Military Switchboard Matting

Mil-Spec MIL-DTL-15562G Surface Protection

Product Sheet

Features

• Type I Switchboard Matting:
1/8" smooth marble finish Blue, Green, Beige, Gray

• Type II Switchboard Matting:
1/8" smooth solid finish Blue, Green, Black

• Type III Switchboard Matting
3/16" diamond embossed Gray and green

Mil-spec approved MIL-DTL-15562G
Compliant with the US Department of Defense

Benefits

• Flame retardant
• Abrasion resistant
• Electrically insulated matting
• Dielectric Test Voltage: 30,000 VAC
• Proof Test over entire surface: 15,000 VAC
• Recommended max use voltage: 3,000 VAC

Product Overview

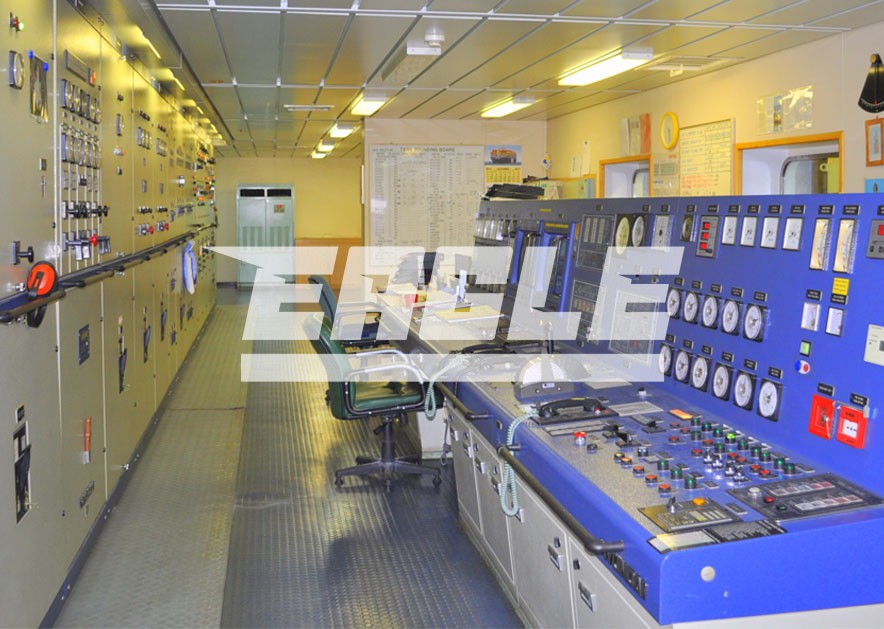

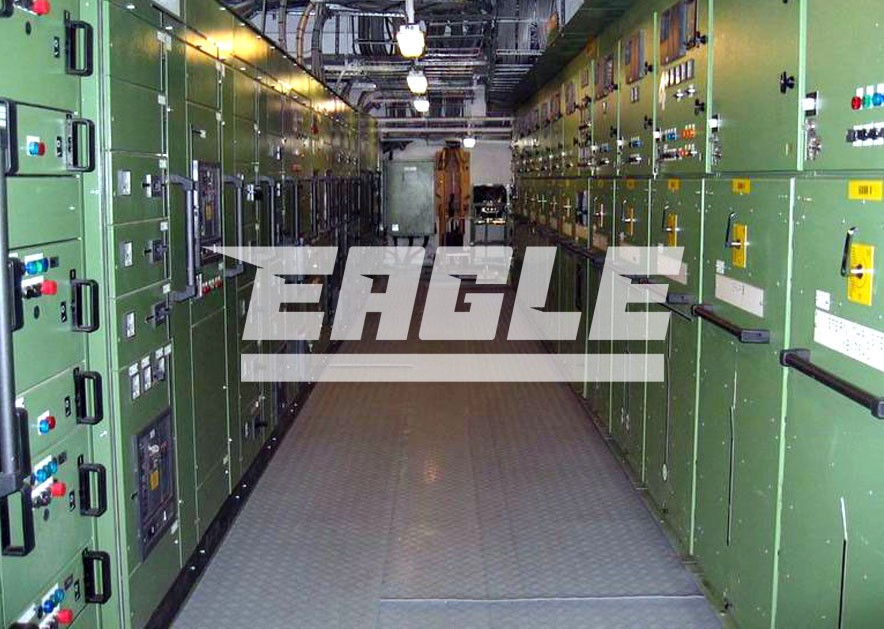

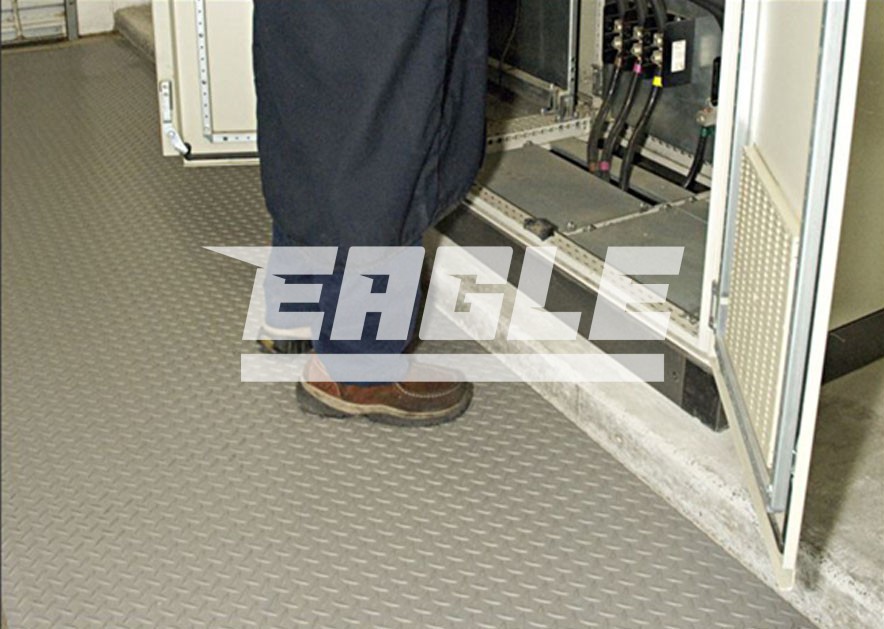

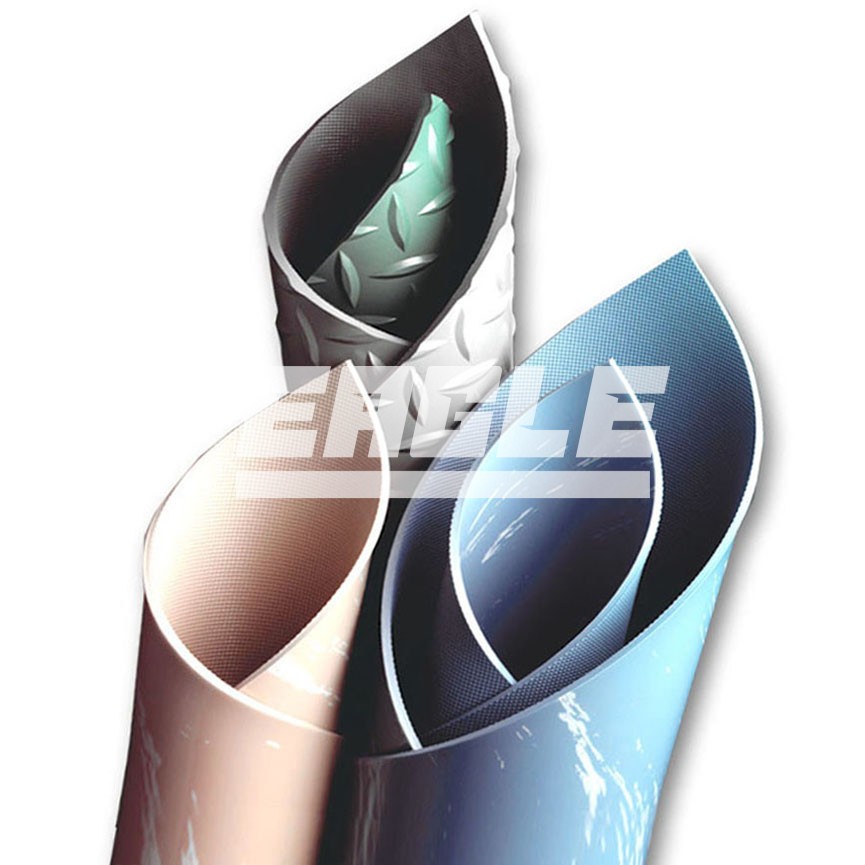

Military Switchboard Mattings are protective floor covers used near electrical switchboard, benches and and high traffic areas on US Navy ships, vessels and air craft carriers. Type I, Type II and Type III switchboard matting are all mil-spec approved MIL-DTL-15562G and compliant with the US Department of Defense.

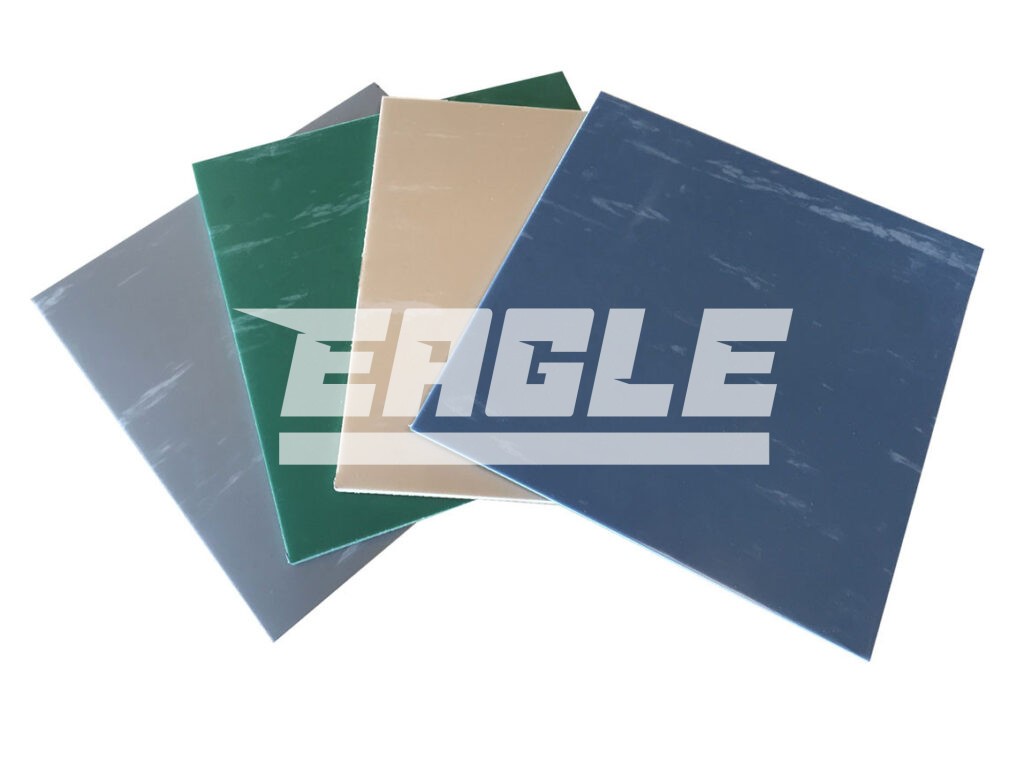

- Type I Matting is a 1/8" smooth marble finish switchboard mat used as a permanent surface cover near electrical switchboard and benches. Available in blue, green, beige, gray.

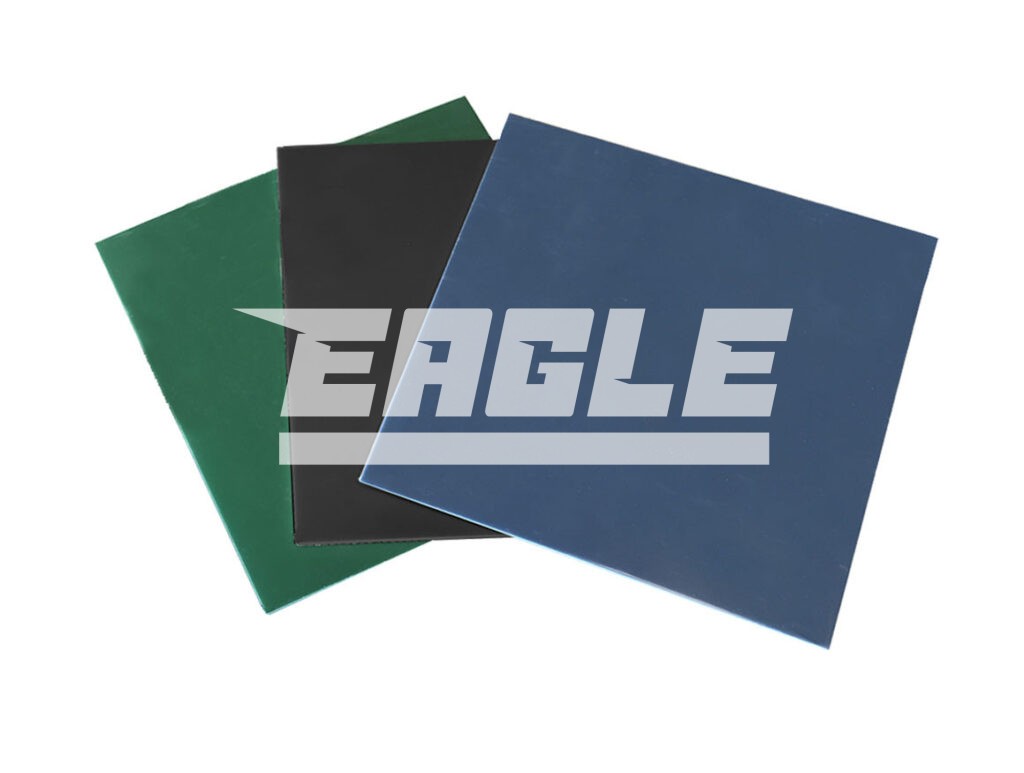

- Type II Matting is a 1/8" smooth solid finish switchboard mat used as a temporary runner near electrical switchboard and benches. Available in blue, green and black.

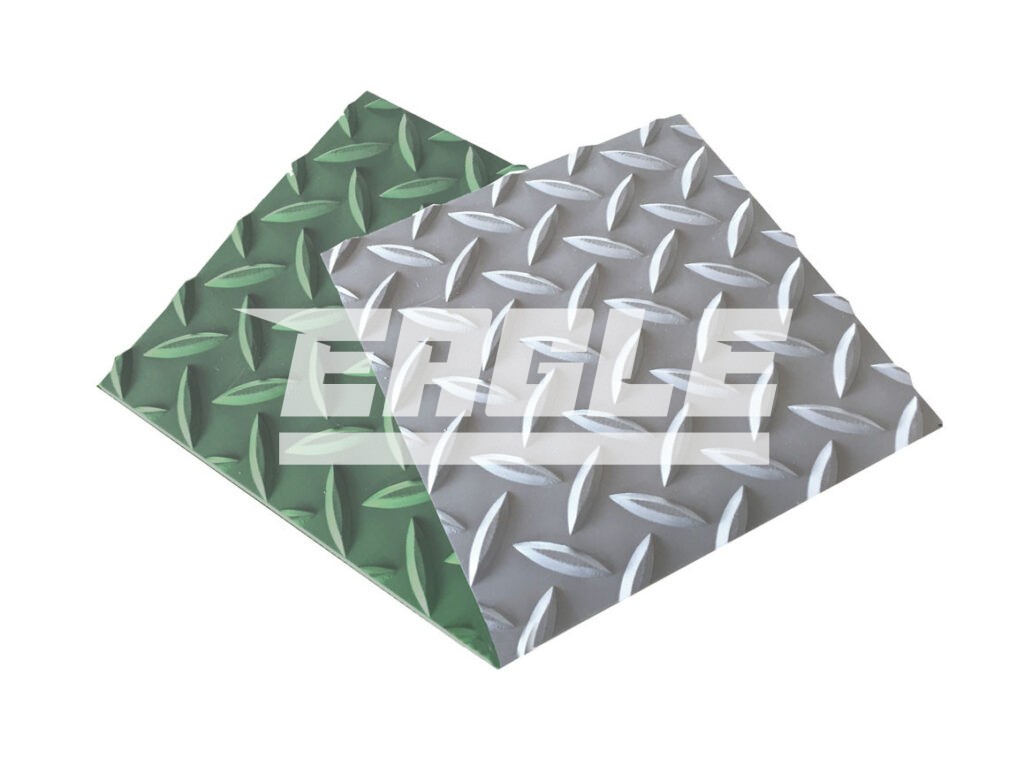

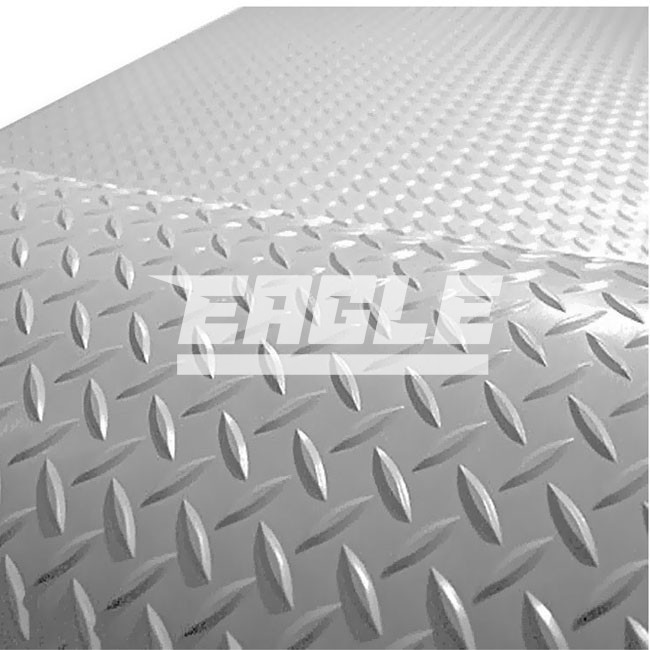

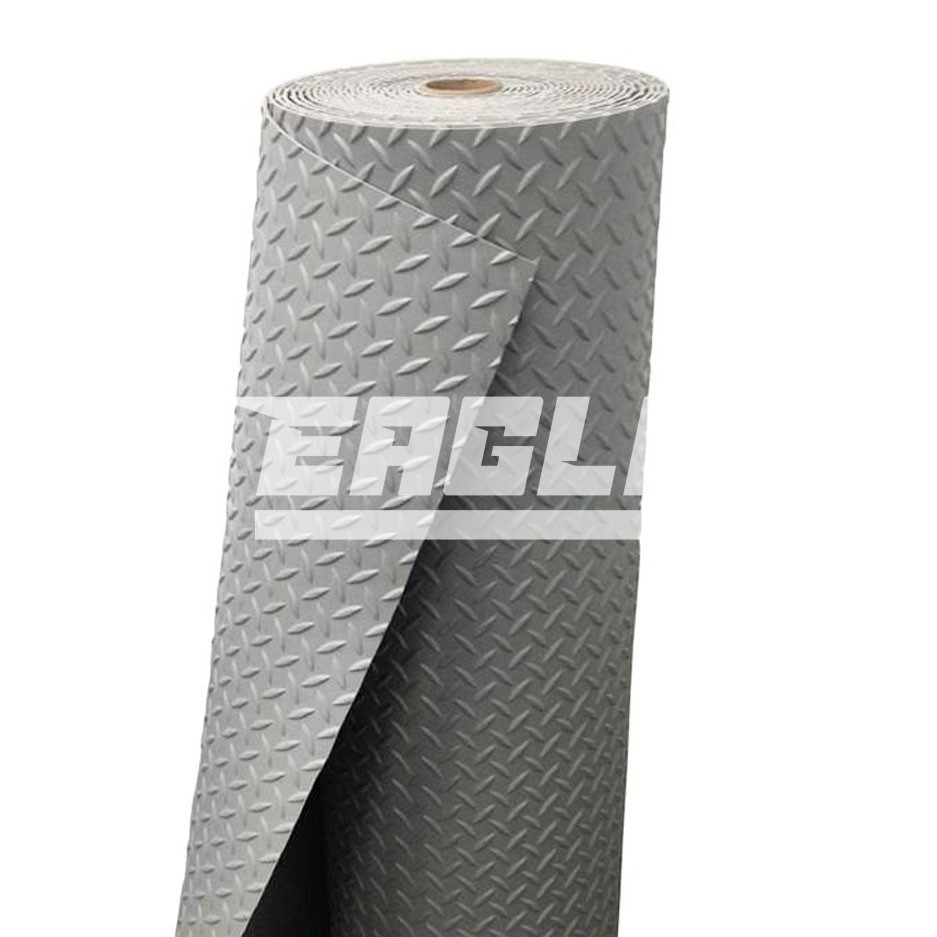

- Type III Matting is a 3/16" diamond embossed switchboard mat used as a temporary runner near electrical switchboard and benches and high traffic work areas. Available in gray and green.

Applications

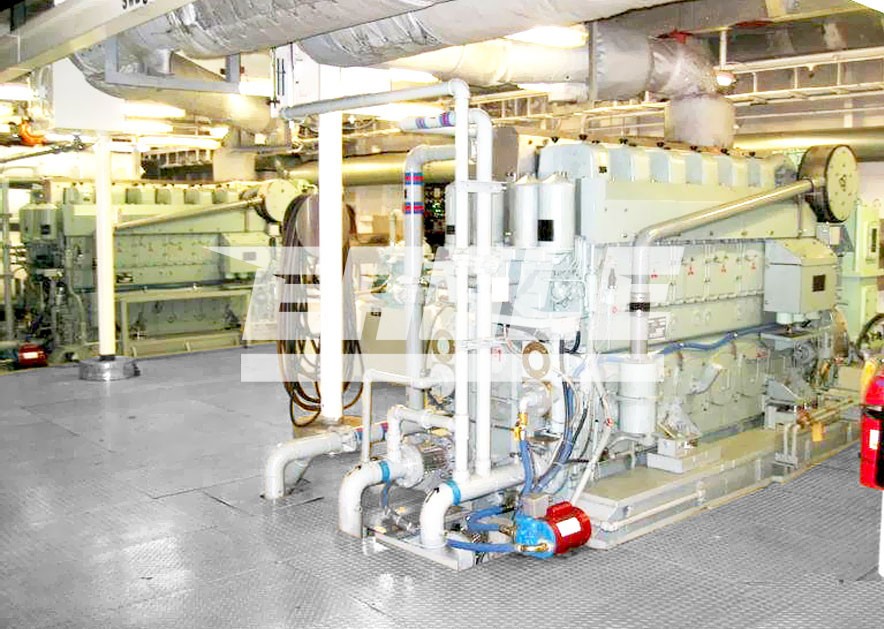

• U.S. Navy ship decks, surfaces, walkways
• High voltage areas and surfaces
• Electrical workbenches
• Sub-stations
• Transformers
• Portable runner mat

Stock Sizes

MATTINGFINISHCOLORROLL SIZEMil Spec, Flame RetardantITEM NUMBERPACKAGING
Type ISmooth MarbleizedBlue36" x 75'MIL-DTL-15562G, FRTYPE-I-BLUE9 rolls per pallet
Type ISmooth MarbleizedGreen36" x 75'MIL-DTL-15562G, FRTYPE-I-GREEN9 rolls per pallet
Type ISmooth MarbleizedBeige36" x 75'MIL-DTL-15562G, FRTYPE-I-BEIGE9 rolls per pallet
Type ISmooth MarbleizedGray36" x 75'MIL-DTL-15562G, FRTYPE-I-GRAY9 rolls per pallet
MATTINGFINISHCOLORROLL SIZEMil Spec, Flame RetardantITEM NUMBERPACKAGING
Type IISmooth SolidBlue36" x 75'MIL-DTL-15562G, FRTYPE-II-BLUE9 rolls per pallet
Type IISmooth SolidGreen36" x 75'MIL-DTL-15562G, FRTYPE-II-GREEN9 rolls per pallet
Type IISmooth SolidBlack36" x 75'MIL-DTL-15562G, FRTYPE-II-BLACK9 rolls per pallet
MATTINGFINISHCOLORROLL SIZEMil Spec, Flame RetardantITEM NUMBERPACKAGING
Type IIIDiamond EmbossedGray36" x 75'MIL-DTL-15562G, FRTYPE-III-GRAY6 rolls per pallet
Type IIIDiamond EmbossedGreen36" x 75'MIL-DTL-15562G, FRTYPE-III-GREEN6 rolls per pallet
