Black Max Fans
BMF Series High CFM Industrial Air Blowers
Product Sheet
Features
• Fan sizes: 12", 16", 20", 24"

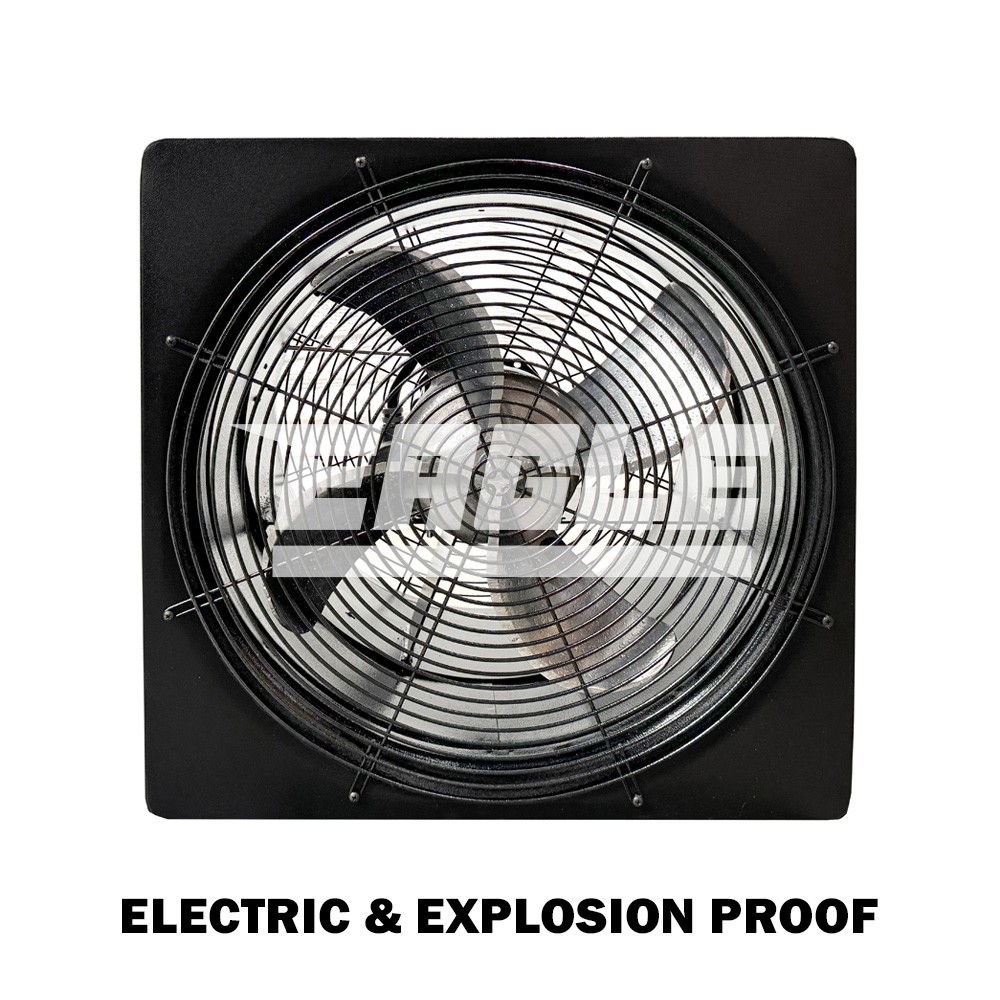

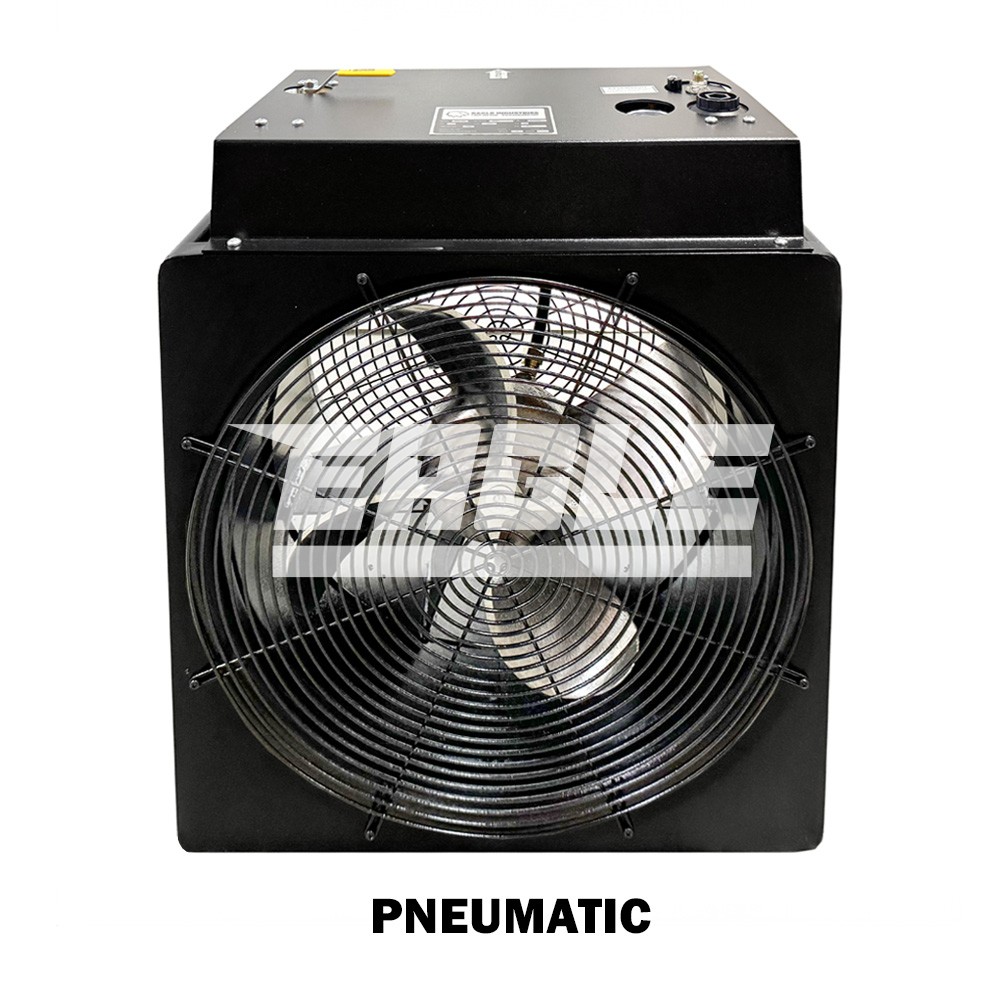

• Motors options: Electric (TEAO), Hazardous Electric (EXPL), Pneumatic (AIR)
• Heavy-duty steel frame construction
• Spiral cast aluminum blades
• Adaptable for dust socks and ducting
• Eagle does not advise the use of dust socks on 24" Black Max Fans.
Benefits
• Designed for maximum airborne dust collection
• Provides negative pressure to aid in collecting silica and other airborne abrasive dust
• High volume air flow design
Adaptable to Eagle's standard:
• Ventilation Ducting: various sizes and types available (see Ducting)
• Dust Socks: various sizes available (see Dust Socks)
Related Products
Stock Sizes
| ITEM NUMBER | BLADE SIZE | MOTOR | SHROUD (CFM) | VENTURI (CFM) | H.P. | AMPS | POWER | WEIGHT | FRAME SIZE (HxWxD) | UPC |
|---|---|---|---|---|---|---|---|---|---|---|
| BMF-12T | 12" | TEAO | 2750 | 3700 | 1/2 | 6.5 | 115v | 40 lbs | 15.5" x 15" x 13" | 818205020521 |
| BMF-12X | 12" | EXPL | 2750 | 3700 | 1/2 | 6.5 | 115v | 42 lbs | 15.5" x 15" x 13" | 818205020538 |
| BMF-12P | 12" | PNEU | 3200 | 5200 | 60 CFM | AIR | 41 lbs | 19.25" x 18.75" x 13" | 818205020514 | |
| BMF-16T | 16" | TEAO | 3200 | 5200 | 1/3 | 5.8 | 115v/230v | 44 lbs | 19.25" x 18.75" x 13" | 818205020552 |
| BMF-16X | 16" | EXPL | 3200 | 5200 | 1/3 | 5.8 | 115v | 49 lbs | 19.25" x 18.75" x 13" | 818205020569 |
| BMF-16P | 16" | PNEU | 4800 | 6800 | 70 CFM | AIR | 45 lbs | 25" x 18.75" x 13" | 818205020545 | |
| BMF-20T | 20" | TEAO | 6700 | 9500 | 1 | 14 | 115v/230v | 85 lbs | 25.5" x 24.75" x 16.25" | 818205020583 |
| BMF-20X | 20" | EXPL | 6700 | 9500 | 1 | 12 | 115v/230v | 93 lbs | 25.5" x 24.75" x 16.25" | 818205020590 |
| BMF-20P | 20" | PNEU | 6900 | 9800 | 75 CFM | AIR | 60 lbs | 30" x 24.75" x 16.25" | 818205020576 | |
| BMF-24T | 24" | TEAO | 8600 | 10,800 | 1.5 | 18 | 115v/230v | 110 lbs | 28" x 28" x 18.75" | 818205020613 |
| BMF-24X | 24" | EXPL | 8600 | 10,800 | 1.5 | 20 | 115v/230v | 115 lbs | 28" x 28" x 18.75" | 818205020620 |
| BMF-24P | 24" | PNEU | 10,000 | 14,200 | 175 CFM | AIR | 105 lbs | 33" x 28" x 18.75" | 818205020606 |
| FAN ACCESSORIES | SIZE | COLOR | ITEM NUMBER | PACKAGING | UPC |
|---|---|---|---|---|---|

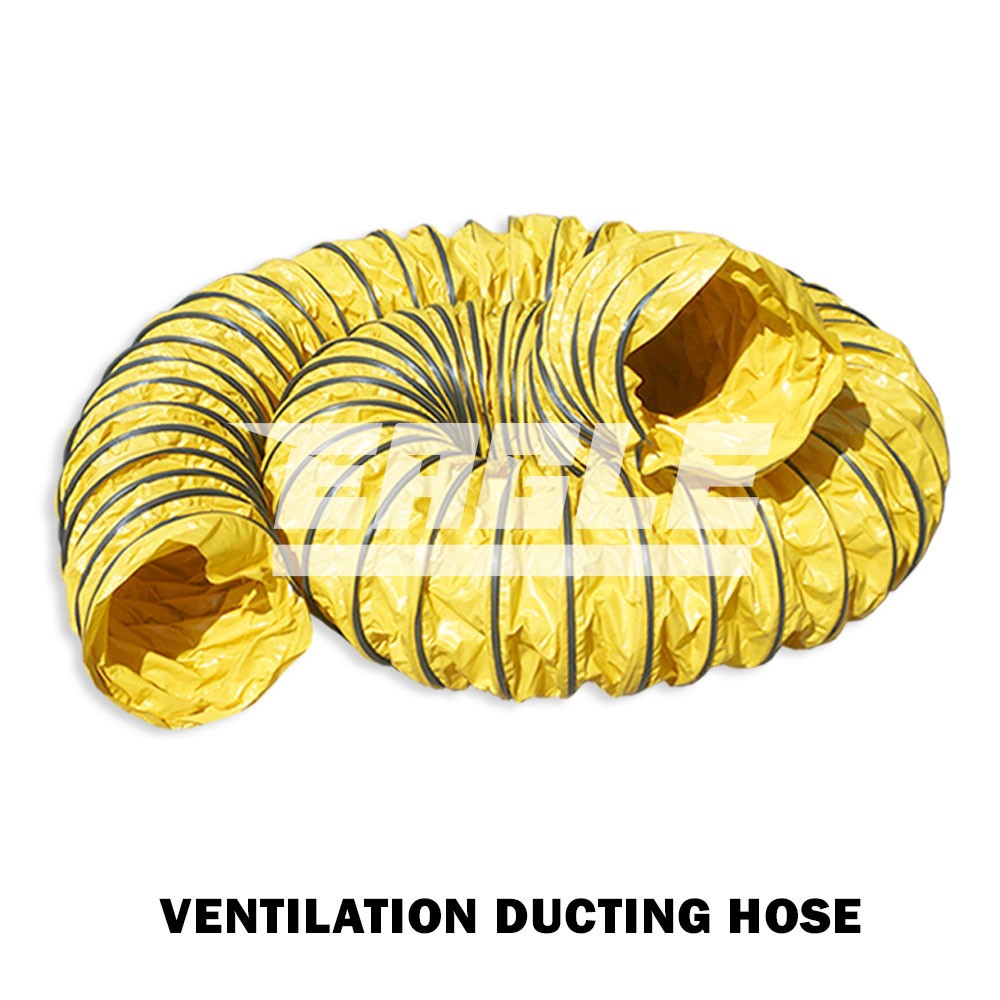

| Ventilation Ducting Hose | 12" PVC ducting | Yellow/Black | DUC-V-12 | 1 each | 818205021894 |
| Ventilation Ducting Hose | 16" PVC ducting | Yellow/Black | DUC-V-16 | 1 each | 818205021900 |
| Ventilation Ducting Hose | 20" PVC ducting | Yellow/Black | DUC-V-20 | 1 each | 818205021924 |
| Ventilation Ducting Hose | 24" PVC ducting | Yellow/Black | DUC-V-24 | 1 each | 818205021931 |

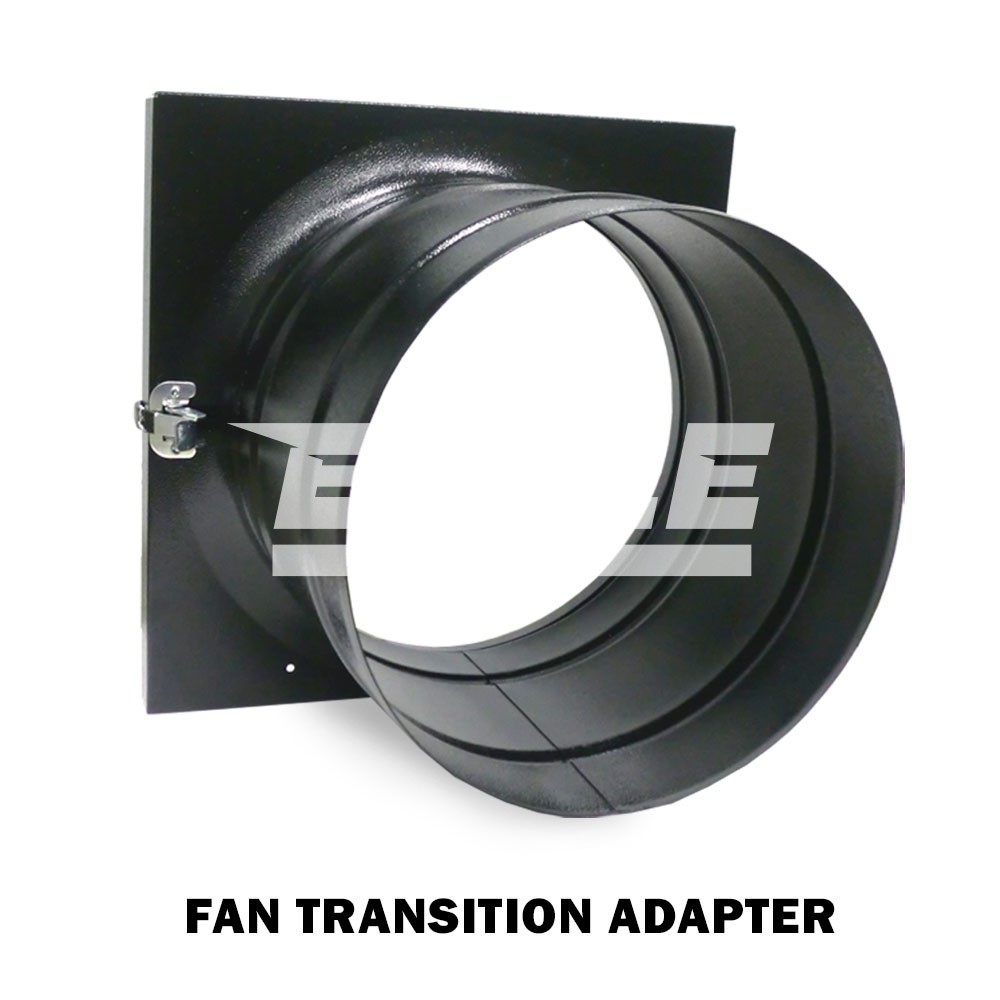

| Fan Transition Adapter | 12" square-to-round | Black | BMA-12 | 1 each | 818205020354 |
| Fan Transition Adapter | 16" square-to-round | Black | BMA-16 | 1 each | 818205020361 |
| Fan Transition Adapter | 20" square-to-round | Black | BMA-20 | 1 each | 818205020378 |
| Fan Transition Adapter | 24" square-to-round | Black | BMA-24 | 1 each | 818205020385 |

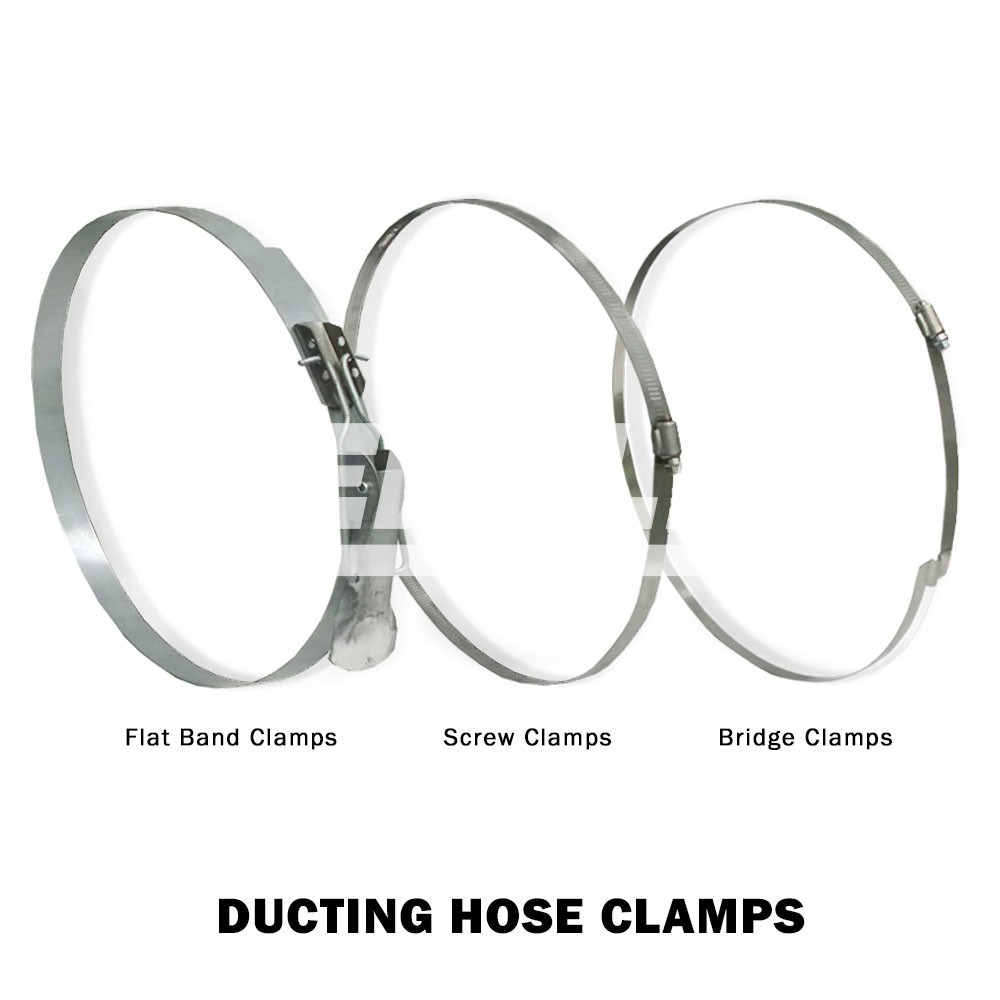

| Ducting Hose Clamps | 12" Clamps | Silver | BMC-12 | 1 each | 818205020415 |
| Ducting Hose Clamps | 16" Clamps | Silver | BMC-16 | 1 each | 818205020446 |
| Ducting Hose Clamps | 20" Clamps | Silver | BMC-20 | 1 each | 818205020477 |
| Ducting Hose Clamps | 24" Clamps | Silver | BMC-24 | 1 each | 818205020507 |
